V400 SQUARE TRUSS
Vusa 400 series truss was designed for maximum support where high loads and long spans (up to 18m) are required. With main chords of 50x3.18mm and diagonal chords of 25x2mm, 400 series truss is strong enough to handle extremely heavy load capacities.
Learn More
V400 Square Truss
Vusa 400 series truss was designed specifically for use in permanent and temporary installations with excellent load bearing capabilities on free spans of up to 18m.
With square profile geometry, main chords of 50x3.18mm and diagonal chords of 25x2mm the V400 truss assures high durability and extra strength. Straight components come in lengths varying from 1 to 5 meter pieces and are available in Light Duty(LD) and Heavy Duty(HD) configurations.
The dimensions, materials used and strong connections offer the optimal product for various purposes like indoor- or outdoor spans and ground supports.
V400 SQUARE TRUSS
Specifications
V400-HD4 | V400-LD4 | |
| Connecting Cross Section | 350 mm relating to the centerline | 350 mm relating to the centerline |
| Outer Dimensions | 400 mm relating to the outer edge | 400 mm relating to the outer edge |
| Connection Type | Conical Coupler | Conical Coupler |
| Main Chord | ø 50.8mm X 3.18mm | ø 50mm X 2mm |
| Bracing Chord | ø 20mm X 2mm | ø 20mm X 2mm |
| Weight | +- 7.8 Kg/M | +- 5.6 Kg/M |

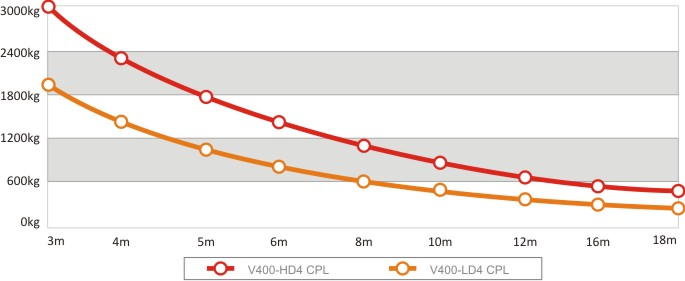

Load Table
| Span Length (m) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 |
|---|---|---|---|---|---|---|---|---|---|
V400-HD4 | |||||||||
| CPL (in Kg) | 2895 | 2171 | 1737 | 1447 | 1085 | 868 | 723 | 542 | 482 |
| UDL (in Kg/meter) | 1930 | 1086 | 695 | 483 | 271 | 174 | 121 | 68 | 54 |
V400-LD4 | |||||||||
| CPL (in Kg) | 1866 | 1400 | 1120 | 933 | 700 | 560 | 466 | 350 | 311 |
| UDL (in Kg/meter) | 1244 | 700 | 448 | 311 | 175 | 112 | 78 | 44 | 35 |
