V290 TRIANGULAR TRUSS
The Vusa 290 triangular truss is designed for light load installations such as projector screens, trade stands, and exhibitions. Its compact dimensions and various lengths make it the obvious choice if you are looking for a structure that transports and stores well.
Learn More
V290 Triangular Truss
Designed for high frequency usage the V290-LD3 & HD3 profiles was designed specifically for the use in exhibition stands, small structures and for projection screens. Also known as triangular or tri-lite truss, straight components come in lengths varying from 1 to 5 meter pieces and are available in Light Duty(LD) and Heavy Duty(HD) configurations.
Corners and curves can be made in 3 different apex configurations namely apex up, in and out. Whilst we produce all three variations the apex up is the most common, see V290 Corners.
Specifications
V290-HD3 | V290-LD3 | |
| Connecting Cross Section | 240 mm relating to the centerline | 240 mm relating to the centerline |
| Outer Dimensions | 290 mm relating to the outer edge | 290 mm relating to the outer edge |
| Connection Type | Conical Coupler | Conical Coupler |
| Main Chord | ø 50.8mm X 3.18mm | ø 50mm X 2mm |
| Bracing Chord | ø 20mm X 2mm | ø 20mm X 2mm |
| Weight | +- 6.2 Kg/M | +- 4.7 Kg/M |

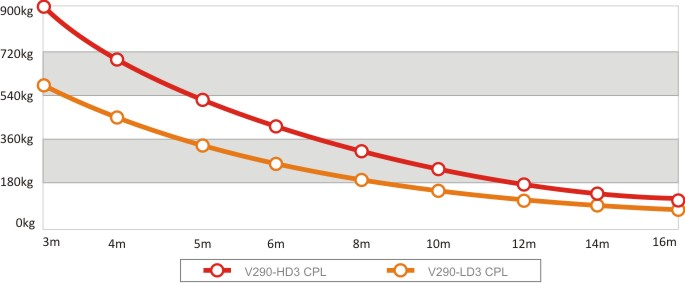

Load Table
| Span Length (m) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|
V290-HD3 | |||||||||
| CPL (in Kg) | 880 | 656 | 520 | 428 | 312.3 | 239.5 | 190 | 152.9 | 124.5 |
| UDL (in Kg/meter) | 586 | 328 | 207 | 142.4 | 78 | 47.4 | 31.6 | 21.1 | 14.8 |
V290-LD3 | |||||||||
| CPL (in Kg) | 593 | 441 | 349.8 | 288 | 210 | 160.7 | 127.4 | 101.9 | 82.3 |
| UDL (in Kg/meter) | 395 | 220.5 | 140 | 96 | 51.9 | 31.4 | 20.5 | 13.7 | 9.8 |
