V290 SQUARE TRUSS
The Vusa 290 square series truss, also now as the box truss or quadro truss, is designed as a versatile solution for permanent installations, rentals, trade fair stands, exhibitions and roof structures. Its compact dimensions make it the obvious choice if you are looking for a structure that transports and stores well, yet can maintain a high load rating and stability. This is the most affordable and most versatile system that is used as a base component in more complex structures.
Learn More
V290 Square Truss
Vusa 290 series truss was designed specifically for use in permanent installations, rentals and exhibitions. Straight components come in lengths varying from 1 to 5 meter pieces and are available in Light Duty(LD) and Heavy Duty(HD) configurations.
The V290-LD4 (Light Duty) profile is ideal as a cost effective solution where high load capacities are not required. Where long spans or high load capacities are required we recommend the V290-HD4 (Heavy Duty) profile. A wide range of corners, curves and accessories allow the constructions of 1, 2 or 3 level structures thus permitting almost limitless possibilities for the realization of creative ideas.
The V290 series is also the most widely used profile in our structures.
Specifications
V290-HD4 | V290-LD4 | |
| Connecting Cross Section | 240 mm relating to the centerline | 240 mm relating to the centerline |
| Outer Dimensions | 290 mm relating to the outer edge | 290 mm relating to the outer edge |
| Connection Type | Conical Coupler | Conical Coupler |
| Main Chord | ø 50.8mm X 3.18mm | ø 50mm X 2mm |
| Bracing Chord | ø 20mm X 2mm | ø 20mm X 2mm |
| Weight | +- 7.2 Kg/M | +- 5.2 Kg/M |

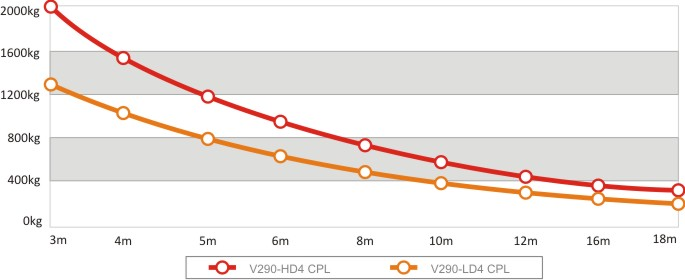

Load Table
| Span Length (m) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 |
|---|---|---|---|---|---|---|---|---|---|
V290-HD4 | |||||||||
| CPL (in Kg) | 1985 | 1489 | 1191 | 993 | 744 | 596 | 496 | 372 | 331 |
| UDL (in Kg/meter) | 1337 | 752 | 481 | 334 | 188 | 120 | 84 | 47 | 37 |
V290-LD4 | |||||||||
| CPL (in Kg) | 1293 | 970 | 776 | 647 | 485 | 388 | 323 | 243 | 216 |
| UDL (in Kg/meter) | 862 | 485 | 310 | 216 | 121 | 78 | 54 | 30 | 24 |
