V290 BEAM TRUSS
Vusa 290 beam series truss, also known as the ladder truss, is designed for support in permanent and temporary installations, structures, exhibitions, theatre, small events, light stand and decoration. This two-chord truss is frequently used for theatre sets, theatre lighting, studio installations and DJ gigs because of its compact style, light weight and high loading capacity when supported uniformly.
Learn More
V290 Beam Truss
Vusa 290 series truss was designed specifically to offer support in permanent installations, structures, exhibitions and decoration. Straight components come in lengths varying from 1 to 5 meter pieces and are available in light duty and heavy duty configurations.
The V290 ladder truss provides for very economical truck pack & great versatility but it is still able to accommodate loads when used in the vertical setup. Whilst the vertical variation is predominantly used, as it is capable of bearing much higher loads then horizontal variation, we produce both variations.
Where looks and performance remain paramount, but space is restricted this is an obvious choice.
Specifications
V290-HD2 | V290-LD2 | |
| Connecting Cross Section | 240 mm relating to the centerline | 240 mm relating to the centerline |
| Outer Dimensions | 290 mm relating to the outer edge | 290 mm relating to the outer edge |
| Connection Type | Conical Coupler | Conical Coupler |
| Main Chord | ø 50.8mm X 3.18mm | ø 50mm X 2mm |
| Bracing Chord | ø 20mm X 2mm | ø 20mm X 2mm |
| Weight | +- 4.1 Kg/M | +- 3.1 Kg/M |

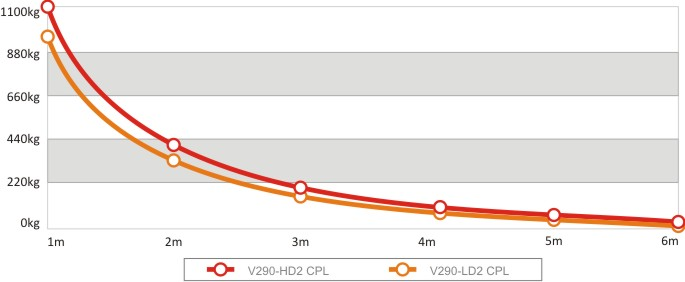

Load Table
| Span Length (m) | 1 | 2 | 3 | 4 | 5 | 6 | |||
|---|---|---|---|---|---|---|---|---|---|
V290-HD2 | |||||||||
| CPL (in Kg) | 1046 | 410 | 214 | 109 | 65.4 | 34 | |||
| UDL (in Kg/meter) | 1046 | 378 | 142 | 54.8 | 26.3 | 11.6 | |||
V290-LD2 | |||||||||
| CPL (in Kg) | 952 | 332 | 167.5 | 86 | 49 | 25.5 | |||
| UDL (in Kg/meter) | 952 | 332 | 111.7 | 43 | 19.6 | 8.8 |
